¶ Description
Get details on a IP address.
¶ Parameters

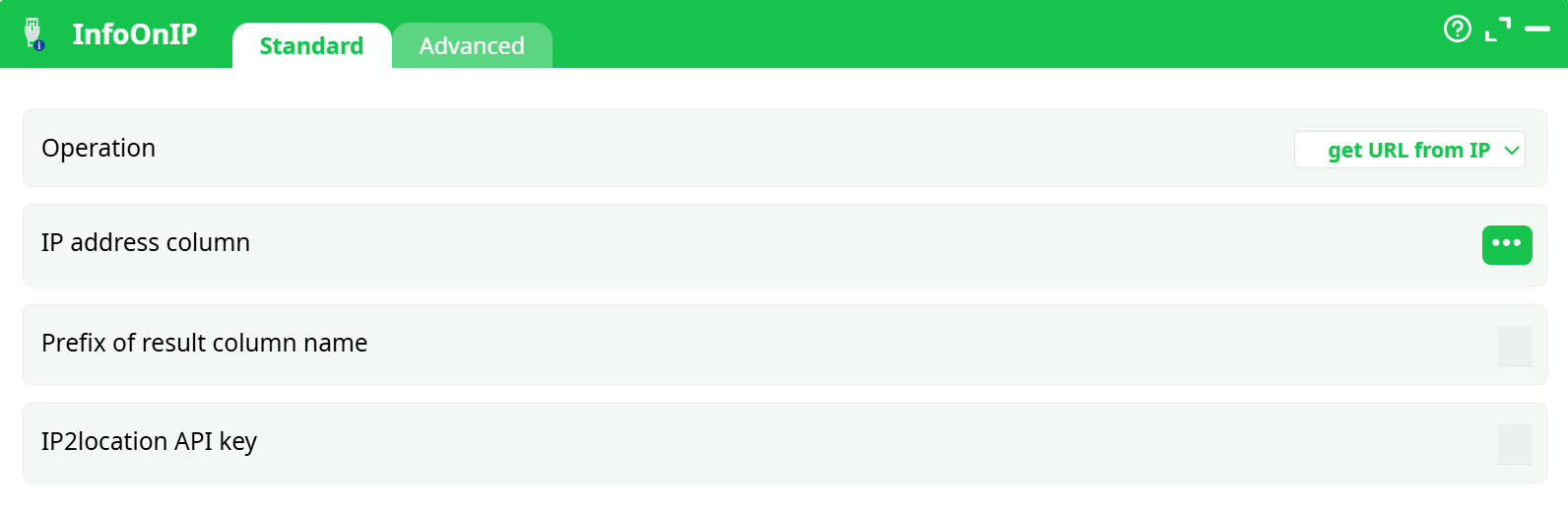

¶ Standard Tab
Parameters:
- Operation Defines the type of lookup:
•Get URL from IP(Reverse DNS)
•Get geolocation from IP
•Get owner information (WHOIS) - IP address column The name of the column containing IP addresses to process.
- Prefix of result column name Optional prefix for the resulting output columns.
- IP2location API key Required only for geolocation or WHOIS lookups that use IP2Location API services.

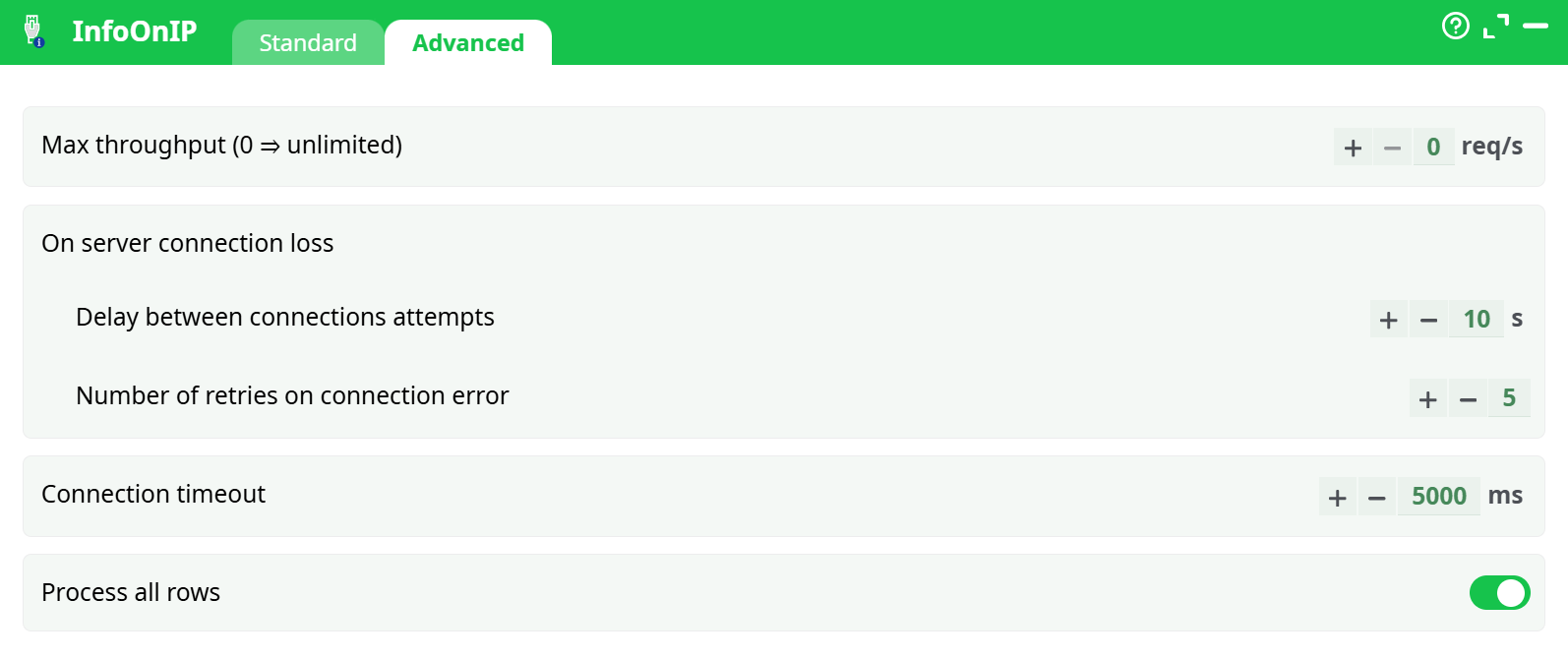

¶ Advanced Tab
Parameters:
- ax throughput (0 ⇒ unlimited) Limit requests per second (0 = unlimited).
- On server connection lost
- Delay between connections attempts Time (seconds) to wait between retry attempts.
- Number of retries on connection error How many retries to attempt if there are connection errors.
- Connection timeout Time limit for each connection attempt in milliseconds.
- Process all rows Process all input rows. If disabled, it may stop on error.
¶ About
The InfoOnIP action retrieves additional information about IP addresses by querying external services.
This can include:
- Reverse DNS lookup (getting the URL/domain from an IP address)
- Geolocation (city, country, coordinates, etc.)
- WHOIS ownership information (organization details, etc.)
This action is helpful for data enrichment and security analysis where additional context about IP addresses is required.
¶ Use Case Example: Reverse DNS Lookup
¶ Goal:
Convert a list of IP addresses into their corresponding domain names using Reverse DNS Lookup.
¶ Input Example (sample_ip_addresses.csv):
ip_address
8.8.8.8
1.1.1.1
208.67.222.222

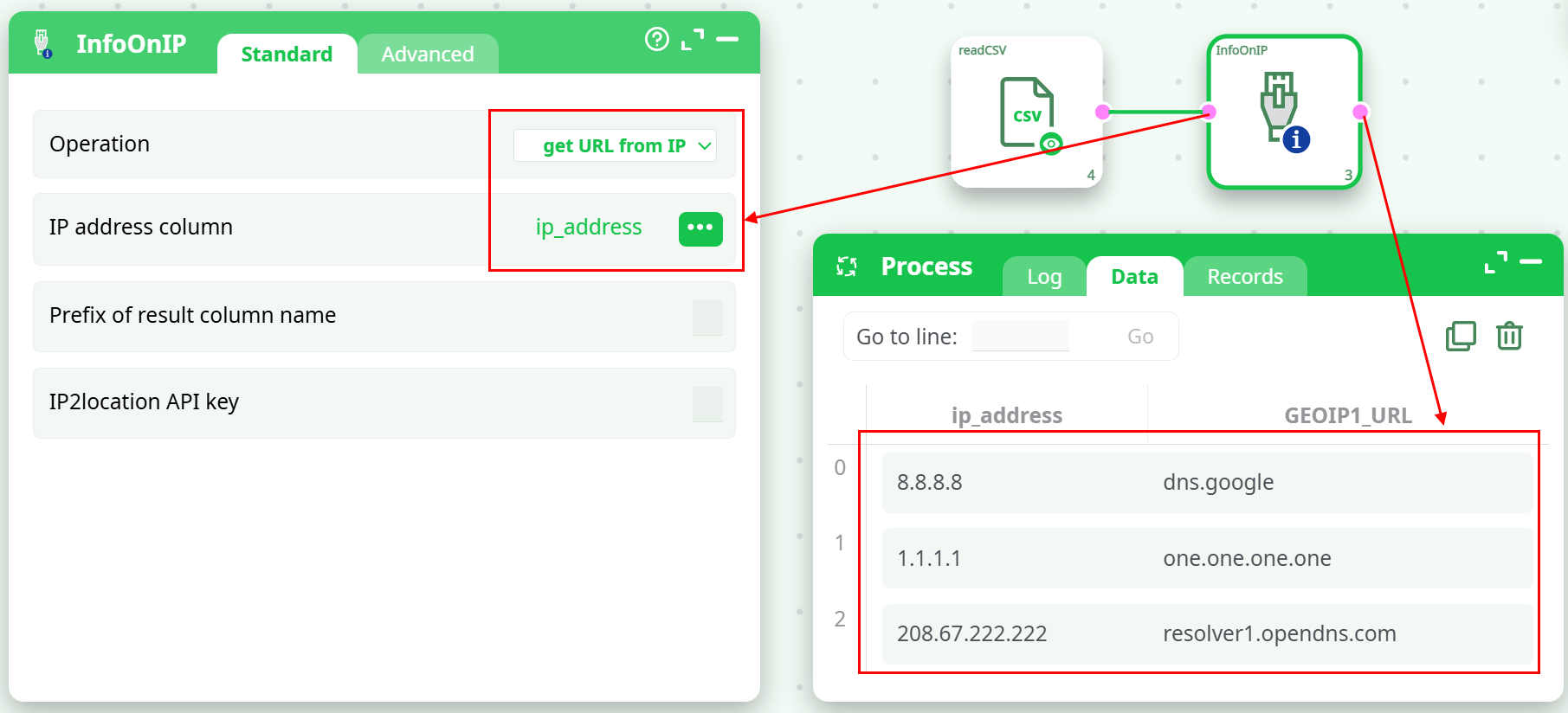

¶ Pipeline Configuration:
- readCSV: Reads the CSV file containing IP addresses.
- InfoOnIP:
-
Operation: Get URL from IP
-
IP address column: ip_address
-
No API Key needed for Reverse DNS Lookup.
¶ Output Example:
¶ Use Case Highlights:
- Quick reverse DNS lookups for security analysis or network diagnostics.
- Can be easily combined with data import/export steps.
- Supports additional lookups like geolocation and WHOIS when needed.
Notes
- Internet connection is required to perform the lookups.
- API key required only for advanced lookups (geolocation, WHOIS).
- You can integrate this action with other data cleansing or reporting actions for broader analysis.
¶ Additional Parameter Details
¶ Prefix of Result Column Name
-
Description:
This parameter allows you to define a prefix that will be automatically added to the names of the result columns generated by this action. -

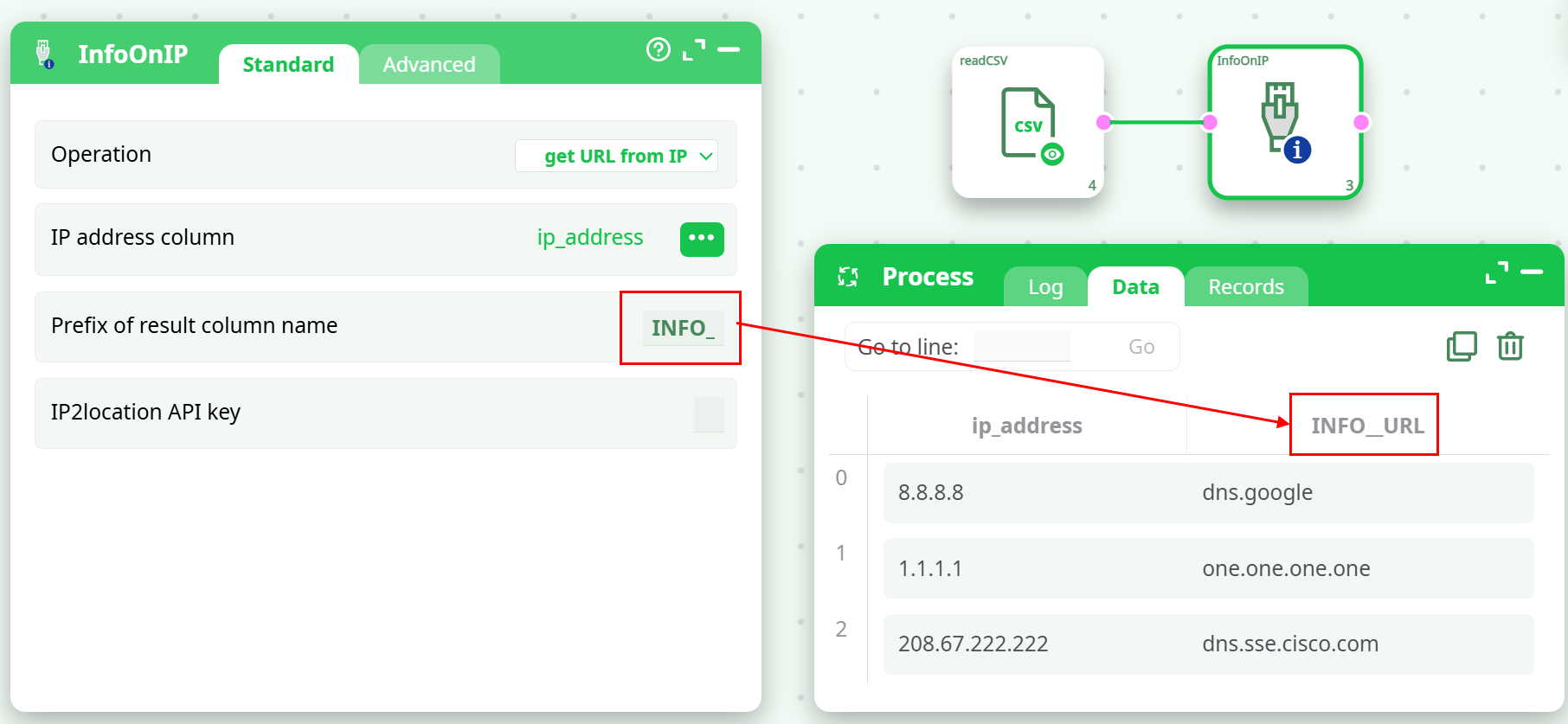

Usage Example:
If you set this value toINFO_and the action generates a result column namedURL, the final output column name will be: INFO_URL
-
When to Use:
Use this option when you want to:- Avoid column name conflicts.
- Clearly identify result columns related to this specific action.
- Handle multiple IP-related actions in the same pipeline.
-
Note:
If left empty, no prefix will be added and default column names will be used.
¶ IP2Location API Key
-
Description:
API key required to access certain advanced services from IP2Location. -
When Required:
This key is necessary only for the following operations:Get geolocation from IPGet owner information (whois)
-
Where to Obtain:
You can obtain an API key by registering an account on the IP2Location website:
https://www.ip2location.com/web-service -
Tip:
For the operationGet URL from IP(reverse DNS lookup), this API key is not required.
