¶ Description
Use the Google API to convert sound files to text.
¶ Parameters

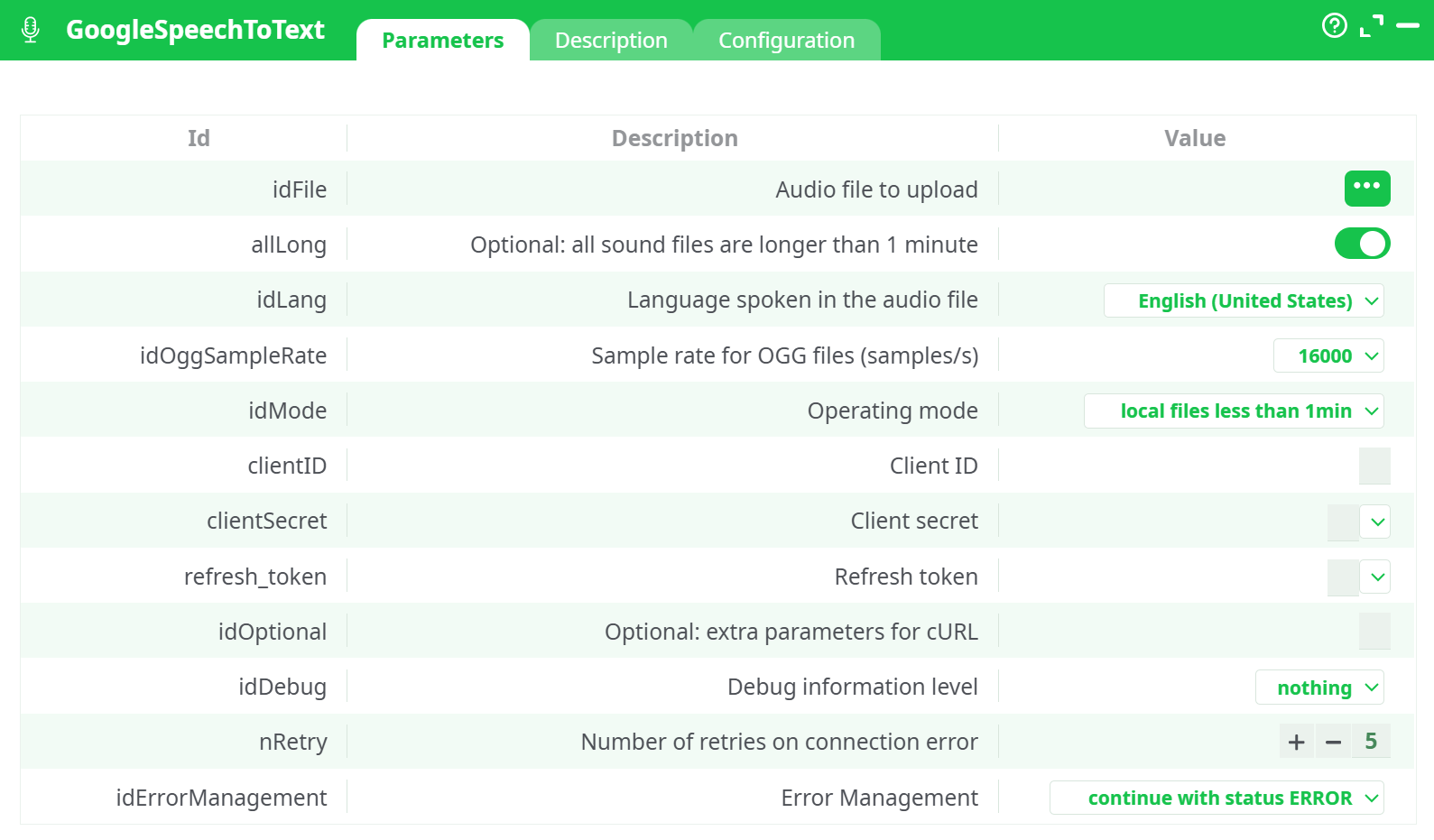

¶ Parameters Tab
Parameters:
- Audio file to upload
- Optional : all sound files are longer than 1 minute
- Langage spoken in the audio file
- Sample rate for OGG files (sample/s)
- Operating mode
- Client ID
- Client secret
- Refresh token
- Optional : additional parameters for cURL )
- Unlock information level
- Attempt to reconnect in case of error
- error handling)

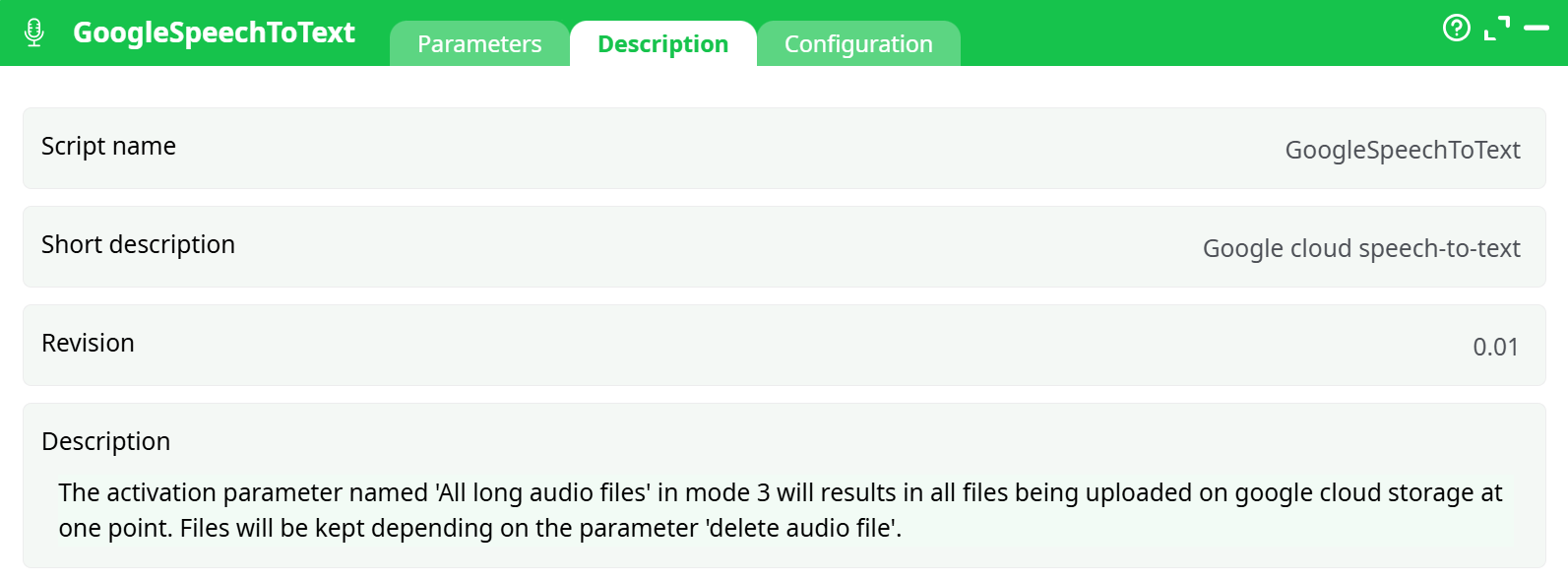

¶ Description
Parameters:
- Script name
- Short description
- Revision
- Decription
¶ Configuration
See dedicated page for more information.
¶ About
GoogleSpeechToText converts audio into text using Google Cloud Speech-to-Text. It supports three operation modes:
- Local files (<1 min) — send short local audio directly to the API.
- Google Cloud Storage (URI) — read long audio from
gs://without uploading. - Local files with upload — upload local audio to your GCS bucket, then transcribe.
The box emits one output row per input audio file with the recognized transcript and metadata (language, sample rate, status, etc.).
¶ Prerequisites
- A Google Cloud project with Speech-to-Text API enabled.
- If you will store/read audio in GCS: the Cloud Storage API enabled and a bucket.
- An OAuth 2.0 Client ID / Client Secret and a Refresh Token with the scopes below.
- Audio files in one of the supported formats (WAV/FLAC/OGG/MP3; Opus-in-OGG supported; 16 kHz recommended).
¶ Create Google OAuth credentials & refresh token (recommended once per project)
-
Enable APIs
-
In Google Cloud Console: APIs & Services → Library
Enable:- Cloud Speech-to-Text API
- Cloud Storage JSON API (needed for upload/read in GCS modes)
-
-
Configure OAuth consent
- APIs & Services → OAuth consent screen
- User type: External (for testing) or Internal (corp)
- Add your email as a Test user (External only)
- App scopes: none required here (granted later via Playground)
-
Create OAuth client
- APIs & Services → Credentials → Create Credentials → OAuth client ID
- Application type: Web application
- Add Authorized redirect URI:
https://developers.google.com/oauthplayground - Copy Client ID and Client Secret.
-
Generate a refresh token (OAuth 2.0 Playground)
-
Open OAuth 2.0 Playground.
-
Click ⚙️ (top-right) → Use your own OAuth credentials → paste Client ID/Secret.
-
Step 1: In the scope box paste and select:
https://www.googleapis.com/auth/cloud-platform https://www.googleapis.com/auth/devstorage.read_write(First scope covers Speech-to-Text; second covers GCS read/write when uploading or reading from
gs://.) -
Click Authorize APIs → pick your Google account → allow access.
-
Step 2: Click Exchange authorization code for tokens.
-
Copy Refresh token (string like
1//04...).
-
Store the refresh token as a secret in atrnatv. The access token will rotate automatically; the refresh token persists.
¶ Input Requirements
¶ Accepted audio
-
Formats: WAV (Linear16), FLAC, OGG/Opus, MP3 (mono recommended).
-
Sample rate: 8,000–48,000 Hz. For OGG/Opus pick the exact Sample rate parameter.
Safe default we use: 16,000 Hz. -
Duration
- Local files (<1 min) mode: ≤ 60 seconds per file.
- GCS URI / Local with upload modes: Long audio supported.
¶ Input columns
Provide at minimum:
idFile— path to local file orgs://bucket/objectdepending on mode.
When Local with upload mode is used (long files handled locally), also provide or configure:
bucket— your GCS bucket (e.g.,my_bucket).- Optional
idFileRemote— remote object name to use in bucket.
¶ Parameters
| Name | Type | Required | Default | Description |
|---|---|---|---|---|
| idFile | string (path/URI) | Yes | — | Audio file to process. Local path in Local modes; gs://... in GCS URI mode. |
| allLong | boolean | No | Off | If On, treat all audio as long-form. In Local with upload mode this batches files for upload; retention controlled by idDelete. |
| idLang | enum | Yes | English (United States) | Language of the audio (e.g., English (United Kingdom), French (France), Chinese (Simplified), Spanish (Spain), Russian (Russia)). |
| idOggSampleRate | enum | Conditional | 16000 | Required for OGG/Opus. Sample rate in samples/sec (8000/12000/16000/24000/48000). |
| idMode | enum | Yes | local files less than 1min | Operating mode: local files less than 1min | Google Cloud Storage URI | local files with upload. |
| clientID | string (secret) | Yes | — | Google OAuth Client ID. |
| clientSecret | string (secret) | Yes | — | Google OAuth Client Secret. |
| refresh_token | string (secret) | Yes | — | OAuth 2.0 refresh token with scopes cloud-platform and devstorage.read_write (if GCS). |
| idFileRemote | string | Conditional | (auto) | Remote filename when idMode = local files with upload. If blank, uses the source filename. |
| bucket | string | Conditional | — | GCS bucket when idMode = local files with upload or using upload helpers. |
| idDelete | boolean | Conditional | Off | If On, delete uploaded GCS objects after transcription (applies to upload mode). |
| idOptional | string | No | — | Extra cURL flags (e.g., timeouts). Use with care. |
| idDebug | enum | No | nothing | Logging level: nothing | basic | verbose. |
| nRetry | integer | No | 5 | Retries on transient connection errors. |
| idErrorManagement | enum | No | continue with status ERROR | Error handling: continue with status ERROR | abort pipeline execution with error. |
Interdependency rules
- idMode = local files less than 1min →
bucket,idDelete,idFileRemotenot used; file size must be ≤ 60s. - idMode = Google Cloud Storage URI →
idFilemust be ags://bucket/object;bucketoptional (ignored). - idMode = local files with upload →
bucketrequired; optionalidFileRemote;idDeletecontrols post-run cleanup. - OGG/Opus audio → set idOggSampleRate accurately; otherwise recognition quality suffers or fails.
¶ Output
The action writes one record per input file.
| Column | Type | Description |
|---|---|---|
| file | string | Source file path or GCS object processed. |
| language | string | Language code used (e.g., en-US). |
| sampleRateHz | integer | Sample rate used by recognizer. |
| transcript | string | Final recognized text. |
| confidence | number | Confidence score (0–1) if provided by API. |
| status | string | OK, ERROR, or SKIPPED. |
| errorMessage | string | Error message when status=ERROR. |
| requestId | string | API request identifier (when available). |
| durationSec | number | Parsed audio duration (if available). |
Exact output columns can vary slightly by atrnatv build; the core fields above are emitted in standard builds.
¶ Troubleshooting
| Symptom | Likely cause | Fix |
|---|---|---|
Missing required parameter: refresh_token |
OAuth token not provided or saved as empty secret. | Generate a refresh token using OAuth Playground and paste into refresh_token. |
Unauthorized / 401 |
Scopes missing or wrong client/secret. | Recreate token with cloud-platform scope; re-enter clientID/clientSecret. |
AccessDenied: storage.objects.create |
No write permission to bucket when uploading. | Grant the account Storage Object Admin on the target bucket or use a bucket you own. |
| Audio > 60s fails in local <1min mode | Mode limitation. | Switch to GCS URI or local with upload. |
| Poor recognition quality | Wrong language or sample rate. | Set idLang correctly; for OGG set idOggSampleRate to exact value (often 16000 for telephony). |
| Timeout / flakiness | Large files or network issues. | Increase nRetry, add --max-time 120 in idOptional, or move files to GCS. |
| Empty transcript | Non-speech audio, silent segments, or unsupported codec. | Verify codec and that the audio contains clear speech; convert to FLAC/LINEAR16 16 kHz mono. |
¶ Use Cases
- Transcribe short call snippets for QA or tagging.
- Bulk transcription of long podcasts/meetings via GCS.
- Automated voicemail to text with downstream routing based on keywords.
- Create text corpora from support recordings for LLM fine-tuning.
¶ Notes & Best Practices
- Keep idLang aligned with the speaker’s dialect (e.g.,
English (United Kingdom)vsEnglish (United States)). - Normalize audio to mono 16-bit PCM 16 kHz when possible for consistent accuracy.
- For very long files, prefer GCS URI; it’s more resilient and cheaper than repeated uploads.
- Store clientID, clientSecret, and refresh_token in Pipeline → Secrets and reference them in this action. Redact these in screenshots and logs.
